How to get minimum distance between two components without selection through Protoolkit?

ppandarkar-2
15-Moonstone
15-Moonstone
‎Oct 22, 2020 05:58 AM
‎Oct 22, 2020 05:58 AM

How to get minimum distance between two components without selection through Protoolkit?

Hi,

I want to measure minimum distance between two components from Protoolkit. Please can we know API and process to do this. We want to make it automate process so no selection. Component we will identify by its attribute and provide to API.



From front end I can measure minimum distance between two components by selecting components and then Measure -> distance then it displays. So need process through protoolkit.



Regards,

Prashant Pandarkar

Labels:
0 Kudos
Notify Moderator
2 REPLIES 2
ppandarkar-2
15-Moonstone
15-Moonstone
(To:ppandarkar-2)
‎Oct 23, 2020 04:43 AM
‎Oct 23, 2020 04:43 AM

Is there any API available? or any process how to achieve this.



Regards,

Prashant Pandarkar

0 Kudos
Notify Moderator
FV
17-Peridot
17-Peridot
(To:ppandarkar-2)
‎Oct 23, 2020 09:53 AM
‎Oct 23, 2020 09:53 AM

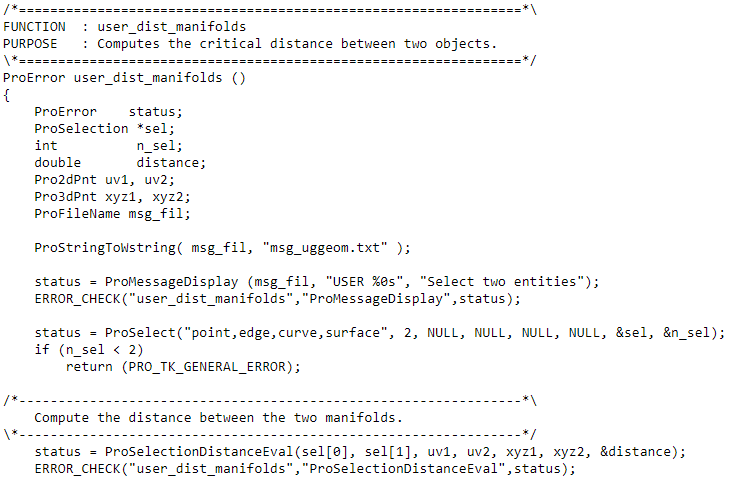

UgGeomInterferCheck.c in example protoolkit directory.

HIH
