How to find this Hatch Pattern Editor

Go to solution
Inho-_-
14-Alexandrite
14-Alexandrite
‎Mar 11, 2023 10:15 AM
‎Mar 11, 2023 10:15 AM

How to find this Hatch Pattern Editor

I want to know how to enter this Hatch pattern editor






Labels:
0 Kudos
Notify Moderator
ACCEPTED SOLUTION

Accepted Solutions
StephenW
23-Emerald III
23-Emerald III
(To:Inho-_-)
‎Mar 11, 2023 11:28 AM
‎Mar 11, 2023 11:28 AM

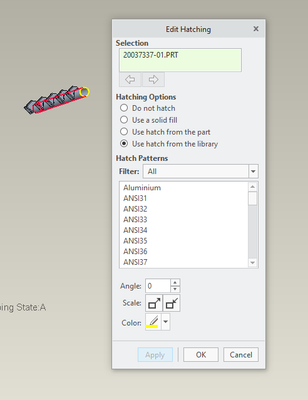

In the MODEL (not drawing), RMB on the cross section, click on the icon "edit hatching"

Then select the part you want to edit the hatching on.











View solution in original post

Notify Moderator
1 REPLY 1
StephenW
23-Emerald III
23-Emerald III
(To:Inho-_-)
‎Mar 11, 2023 11:28 AM
‎Mar 11, 2023 11:28 AM

In the MODEL (not drawing), RMB on the cross section, click on the icon "edit hatching"

Then select the part you want to edit the hatching on.
